Our Guide to Structural Steel Fire Protection
An external fire door is designed to help protect a building by resisting the spread of fire, supporting safe escape and maintaining the fire safety strategy of the property. Unlike a standard external door, an external fire rated door must be specified, installed and maintained as a complete tested door set, with the correct frame, seals, hardware and ironmongery.
External fire doors are commonly used in commercial buildings, apartment blocks, communal residential areas, plant rooms, service areas, escape routes and final exit points. They may also be required for flats, particularly where a door forms part of a protected route, opens onto a communal area or is included within the building’s fire strategy.
At Fire Industry Specialists Ltd, we provide external fire door installation and replacement services for commercial buildings, residential blocks and managed properties across the UK. Our focus is on helping you choose the right door set for the location, risk level and required fire rating.

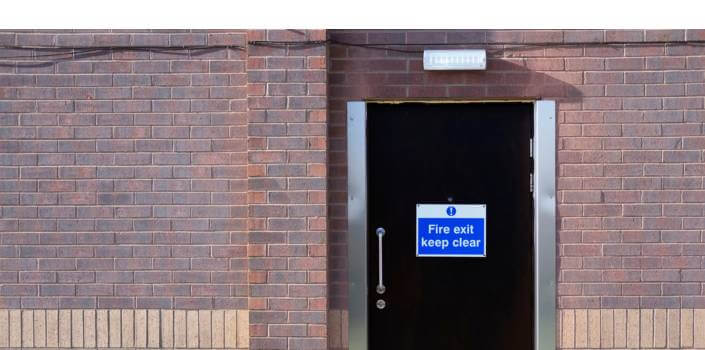

What is an external fire door?
An external fire door is a fire rated door installed on the outside line of a building or between an internal space and an external area. It is designed to provide fire resistance for a specified period, helping to slow the movement of flames, heat and smoke where required by the fire strategy.
External fire doors can be used in several different ways. In some buildings, they protect escape routes or final exits. In others, they separate higher risk areas, such as plant rooms, bin stores, service areas or commercial units. In blocks of flats, external fire doors for flats may include flat entrance doors that open onto communal corridors or external deck access routes.
The key difference between a standard external door and a fire rated external door is performance. A fire rated external door must be tested and specified to provide a defined level of fire resistance, such as FD30, FD60, FD90 or FD120. The required rating depends on the building design, use, risk profile and fire strategy.
Fire resistance ratings for external fire doors
A common requirement is an external FD30 fire door, which is designed to provide at least 30 minutes of fire resistance when correctly specified, installed and maintained.
FD30 doors are often used in residential and commercial settings, but they are not the only option. Depending on the building and fire strategy, external fire rated doors may need a higher rating, such as:
- FD30 for 30 minutes of fire resistance
- FD60 for 60 minutes of fire resistance
- FD90 for 90 minutes of fire resistance
- FD120 for 120 minutes of fire resistance
The correct rating should never be guessed. It should be based on the building’s design, fire compartmentation plan, location of the door, escape route strategy and the level of protection required.
A fire rating also only applies when the full door set performs correctly. That means the door leaf, frame, seals, hinges, closer, glazing, threshold, locking system and ironmongery all need to be compatible and installed in line with the tested specification.
External fire doors for flats and apartment blocks
External fire doors for flats are an important consideration in apartment blocks, housing developments and multi-occupied residential buildings. In many cases, the most critical fire doors in a block of flats are the doors that open from individual flats onto communal corridors, stairwells or deck access areas.
These doors help protect escape routes and support compartmentation between individual flats and shared areas. Where a flat entrance door opens onto a common route used by other residents, it may need to provide both fire resistance and smoke control.
External fire doors for flats may be required in locations such as:
- flat entrance doors opening onto communal corridors
- doors opening onto external deck access routes
- communal entrance and exit points
- doors to bin stores or plant rooms
- doors to risers, service cupboards and electrical rooms
- doors protecting stairwells or protected lobbies
In residential blocks, it is especially important that fire doors are not treated as standard front doors. They need to close correctly, use compatible hardware and remain in good condition as damaged or poorly fitted door can allow fire or smoke to spread into shared escape routes more quickly.
When are external fire rated doors required?
External fire rated doors are typically required where the door plays a role in compartmentation, escape protection or separation from a higher risk area. The exact requirement depends on the building type, layout and fire strategy.
They may be required in:
- apartment blocks and managed residential buildings
- offices and commercial premises
- schools, colleges and universities
- healthcare buildings and care environments
- hotels and hospitality premises
- industrial units and warehouses
- external escape routes and final exit points
A fire rated external door may also be needed where a door is close to another building, opens onto an external escape route or forms part of a compartment boundary.
Because requirements vary from building to building, the safest approach is to check the fire strategy, drawings, fire risk assessment and relevant compliance guidance before choosing a door. This helps ensure the door set is suitable for its intended location.
Our external fire door services
External fire door installation
We install external fire doors as complete door sets, not just standalone door leaves. This helps ensure the door, frame, seals, hardware and ironmongery work together as a tested system.
Our installation service can support new build projects, refurbishment programmes, fire safety upgrades and planned maintenance works. We can work with contractors, property managers and building owners to ensure the installation is suitable for the door location, required rating and wider fire strategy.
External fire door replacement
External fire doors may need replacing when they are damaged, heavily worn, non-compliant or no longer suitable for the building. In some cases, older doors may not have the correct certification, may have been altered, or may no longer close and seal correctly.
We can assess existing doors and replace them with suitable external fire rated doors, including FD30, FD60, FD90 and FD120 options where required. Replacement is often the best route when repairs would not restore the intended fire performance.
External fire doors for communal areas
We can support external fire doors for flats, apartment blocks and communal residential buildings. This may include flat entrance doors, doors to communal corridors, external access routes, stairwells, service cupboards, risers, plant rooms and bin stores.
Our team understands the importance of protecting shared escape routes and maintaining compartmentation in residential settings. We can help ensure the correct door rating, seals, closer, frame and hardware are specified and installed for the location.
External fire exit support
External fire exit and escape doors must allow safe movement out of the building during an emergency. Where these doors also require fire resistance, they need to be carefully specified to meet both escape and fire protection requirements.
We can install and replace external fire exit doors with suitable fire rated door sets, panic hardware, emergency exit devices, closers and compatible ironmongery where required. Our focus is on ensuring the door supports safe evacuation while remaining suitable for daily use.
Why choose FIS for external fire doors?
Clients choose FIS because we provide:
- complete fire door set installation
- support for commercial buildings and apartment blocks
- external fire door replacement and upgrades
- FD30, FD60, FD90 and FD120 fire door options
- competent installation by experienced fire door specialists
- practical guidance for building owners and responsible persons
- UK-wide support through LS Fire Group
- IFC third-party certified fire door expertise
Speak to FIS today
External fire doors play an important role in protecting buildings, supporting safe escape and maintaining compartmentation. Whether you need an external FD30 fire door, external fire doors for flats, or a replacement fire escape, FIS can help.
Contact us today to discuss your external fire door installation or replacement requirements. Our team can review your building, advise on suitable options and help you choose a compliant, practical solution.
Fire safety is a responsibility that never rests and we’re here to implement complete fire protection for your business. Get in touch with our industry-leading experts to learn how we prevent fires, protect lives, and ensure compliance for you.
External Fire Door FAQs
- Are external fire doors for flats different from standard front doors?
- Yes, external fire doors for flats are different from standard front doors because they may need to provide tested fire resistance and smoke control. A flat entrance door that opens onto a communal corridor or shared escape route is part of the wider fire safety strategy. It should be specified as a suitable fire door set, with compatible frame, seals, closer, hinges, latch and other hardware.
- What is an external FD30 fire door?
- An external FD30 fire door is designed to provide 30 minutes of fire resistance when installed and maintained correctly. The term may also be written as FD30 external fire door or FD30 fire door external. The rating applies to the full door set, not just the door leaf, so the frame, seals, hardware and installation quality all matter.
- Are FD60, FD90 and FD120 external fire doors available?
- Yes, external fire rated doors can be specified with higher fire resistance ratings, including FD60, FD90 and FD120 where required. These doors are typically used where the fire strategy calls for a longer period of protection. The right rating will depend on the building type, compartmentation requirements, door location and level of risk.
- What is the difference between an external fire door and an external fire exit door?
- An external fire door is designed to resist fire for a specified period. An external fire exit door is designed to provide a safe escape from the building. Some doors need to do both, but not every fire exit door is automatically fire rated. If an external fire exit door also forms part of a compartment line or protected route, it may need to be specified as a fire rated external door with suitable escape hardware.
- Do external fire doors need smoke seals?
- External fire doors may need smoke seals depending on their location and the building’s fire strategy. Doors protecting communal corridors, escape routes or flat entrances often need to restrict both fire and smoke. Smoke seals help limit smoke movement through the gaps around the door, while intumescent seals expand under heat to help restrict fire spread.
- Can external fire rated doors include glazing?
- Yes, external fire rated doors can include glazing, but the glass, beads, seals and glazing system must all be compatible with the fire rated door set. Standard glass should not be added to a fire door. Any glazing must be fire rated and installed in line with the tested specification.
- When should an external fire door be replaced?
- An external fire door may need replacing if it is damaged, warped, poorly fitting, missing certification, fitted with incompatible hardware or no longer closes correctly. Replacement may also be needed after unauthorised alterations, severe weather damage, corrosion, failed seals or repeated maintenance issues. If defects mean the door cannot be restored to the required standard, replacement is usually the safest option.
- Can FIS replace external fire doors in occupied buildings?
- Yes, FIS can support external fire door replacement in occupied commercial and residential buildings. Careful planning is important to minimise disruption, maintain security and ensure escape routes remain properly managed during the works. Our team can help plan the replacement process and install suitable external fire rated doors for the building.
